Scraping and plotting text

Author

Peter Ralph

Published

February 11, 2026

Today

  1. Getting data off the web: “scraping”.

  2. Looking at the data: more working with words.

Scraping

Things to know

  1. Data access, data usage, and robots.txt.
  2. How a web page is structured.
  3. Getting a web page’s content into structured text.

Are you a robot?

The legality and ethics of “scraping the web” are beyond the scope of this course. Considerations:

  1. Read <root url>/robots.txt. (example: imdb)
  2. Do not spam the website! Use a timeout if making lots of requests.
  3. Use an API if it exists! (not this: OSM hit by bots, ignoring bulk download
  4. Respect copyright, data usage agreements, etcetera.

The structure of a web page: the Document Object Model

![image from https://en.wikipedia.org/wiki/Document_Object_Model showing a tree-like arrangement]](resources/DOM-model.png)

Here’s a web page:

Live view: resources/example.html

html_doc = """
<html>
  <head>
    <title>A simple example</title>
  </head>
  <body>
    <h1>Hello, world!</h1>
    <p class="first">This is a website.</p>
    <p>It contains words.</p>
  </body>
</html>
"""

Draw the document tree!

How to navigate the tree:

Use the developer tools!

For instance: right-click on anything; select “inspect”.

Fun in your browser:

Go to uoregon.edu, and

  1. Change some text. (inspect -> click through to the text -> edit)
  2. Make something dissappear. (inspect -> add display: none; to the element’s CSS)
  3. Find the path through the document tree from the root (html) to something. (inspect)

Doing this in python

We’ll use Beautiful Soup.

import bs4
soup = bs4.BeautifulSoup(html_doc, 'lxml')
print(soup.prettify())
<html>
 <head>
  <title>
   A simple example
  </title>
 </head>
 <body>
  <h1>
   Hello, world!
  </h1>
  <p class="first">
   This is a website.
  </p>
  <p>
   It contains words.
  </p>
 </body>
</html>

Finding things:

For example all <p> tags:

soup.find_all("p")
[<p class="first">This is a website.</p>, <p>It contains words.</p>]

Other arguments narrow things down:

soup.find_all("p", class_="first")
[<p class="first">This is a website.</p>]

Or, using CSS selectors:

soup.select("p.first")
[<p class="first">This is a website.</p>]

Output:

Generally we want the text nested within certain tags. For instance:

for t in soup.body:
    if t.name == "h1":
        print("header", t.string)
    elif t.name == "p":
        print("paragraph:", t.string)
header Hello, world!
paragraph: This is a website.
paragraph: It contains words.

Now welcome to the real world

Real-world websites are a lot more complex. Let’s have a look at IMSDb.

import requests
session = requests.Session()
html_string = session.get("https://imsdb.com/scripts/Clueless.html")
doc = bs4.BeautifulSoup(html_string.content, 'lxml')
doc.title
<title>Clueless</title>

Hands-on

Goals:

  1. Figure out what distinguishes the script from other parts of the web page.
  2. Figure out how to select those bits, in python.
  3. Separate out different bits of the script.
  4. Clean up the result.

Summarizing text

Next let’s look at the script to Interstellar, available in two files: a CSV file of per-line information and a text file with one “line” per line.

Setup

import json, re, collections
import pandas as pd
import numpy as np
import plotnine as p9
import wordcloud
import matplotlib.pyplot as plt
import spacy

nlp = spacy.load("en_core_web_sm")

What information do we have?

info = pd.read_csv("data/interstellar_info.csv", index_col=0)
info
scene_num what who directions
0 0 direction NaN NaN
1 0 direction NaN NaN
2 0 direction NaN NaN
3 0 direction NaN NaN
4 0 direction NaN NaN
... ... ... ... ...
2457 491 scene NaN NaN
2458 492 direction NaN NaN
2459 492 direction NaN NaN
2460 492 direction NaN NaN
2461 492 direction NaN NaN

2462 rows × 4 columns

info['who'].value_counts()
who
COOPER             305
BRAND              174
DOYLE               65
CASE                62
ROTH                60
MURPH               32
TARS                32
TOM                 26
DONALD              20
ANSEN               14
ADMINISTRATOR       12
DOCTOR              11
LIU                 10
PRINCIPAL            9
NSA AGENT            8
ASSISTANT            6
BRAND'S FATHER       5
BALLPLAYER           4
RIGGS                3
ROBOT                3
FARMER               3
EMILY COOPER         3
OLD ENGINEER         2
GOVERNMENT MAN       1
OLD MAN              1
ENGINEER ROBOT       1
CHINESE OFFICER      1
MURPH'S WIFE         1
WIFE                 1
Name: count, dtype: int64

Reading, and parsing, the lines

nlp = spacy.load("en_core_web_sm")

with open("data/interstellar_lines.txt", "r") as f:
    lines = [nlp(l.strip()) for l in f.readlines()]

for l in lines[:3]:
    print(l)
SPACE.
But not the dark lonely corner of it we're used to. This is a glittering inferno -- the center of a distant galaxy.
Suddenly, something TEARS past at incredible speed: a NEUTRON STAR. It SMASHES headlong through everything it encounters... planets, stars. Can anything stop this juggernaut?

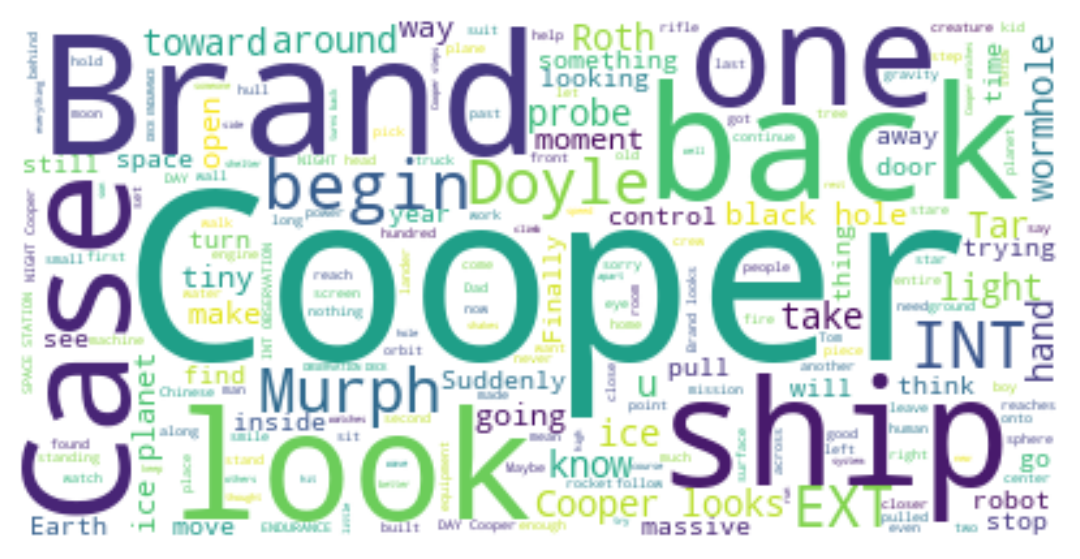

Let’s make a word cloud

wc = wordcloud.WordCloud(
    random_state=123,
    background_color='white'
).generate(" ".join([l.text for l in lines]))
plt.imshow(wc, interpolation='bilinear')
plt.axis("off")

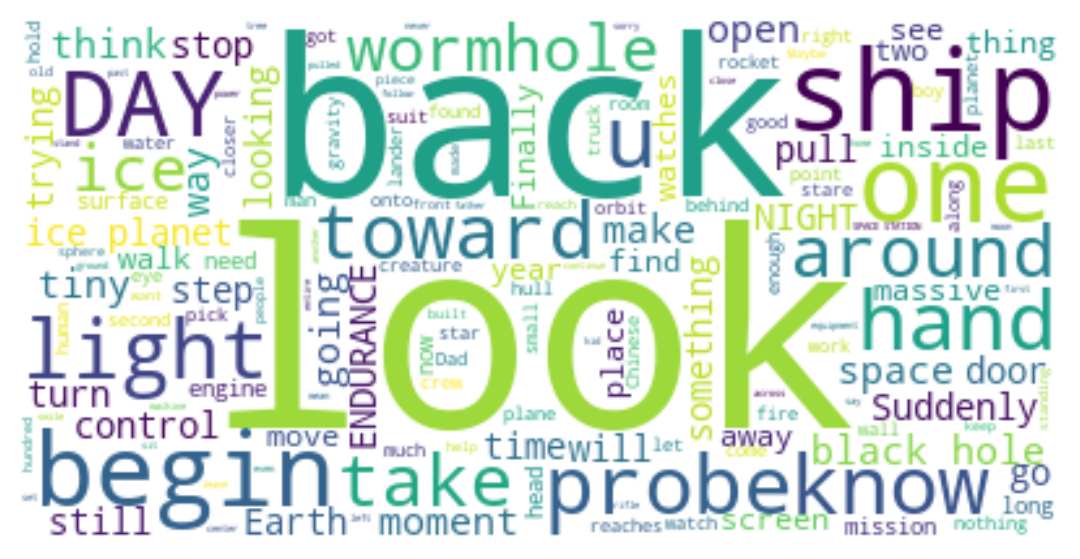

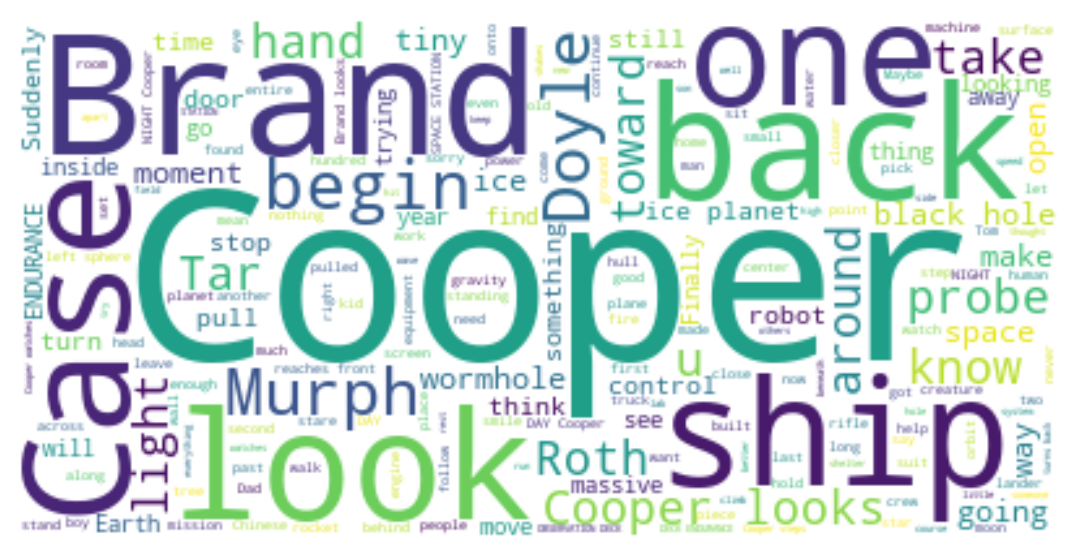

Let’s make a word cloud, take 2

stopwords = set(wordcloud.STOPWORDS).union(["INT", "EXT"])

wc = wordcloud.WordCloud(
    stopwords=stopwords,
    random_state=123,
    background_color='white'
).generate(" ".join([l.text for l in lines]))
plt.imshow(wc, interpolation='bilinear')
plt.axis("off")

Let’s make a word cloud, take 3

characters = [s.title() for s in set(info['who']) if isinstance(s, str)]

wc = wordcloud.WordCloud(
    stopwords=stopwords.union(characters),
    random_state=123,
    background_color='white'
).generate(" ".join([l.text for l in lines]))
plt.imshow(wc, interpolation='bilinear')
plt.axis("off")

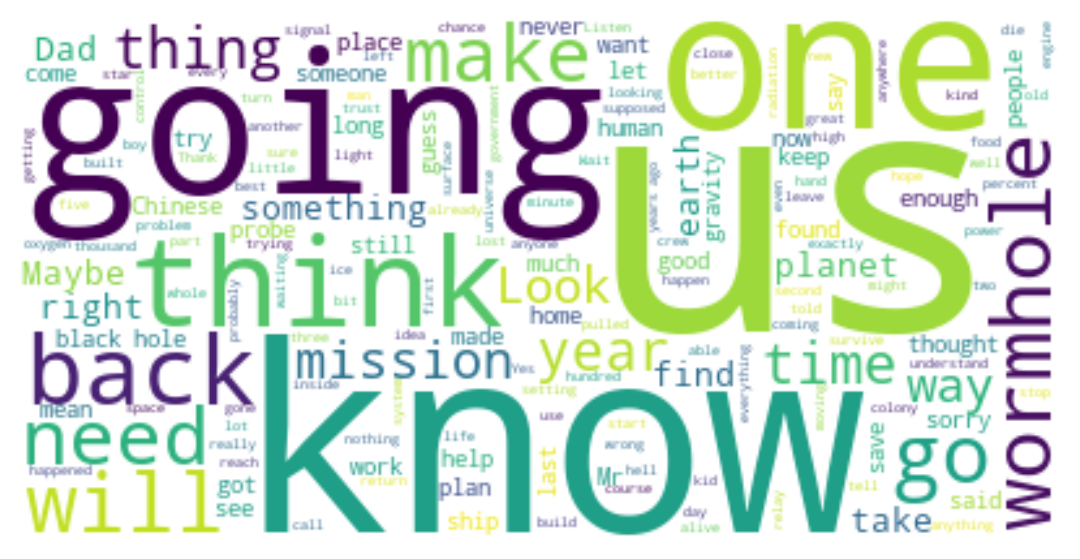

Let’s make a word cloud, take 4

t = " ".join([l.text for z, l in zip(info['what'] == 'dialog', lines) if z])

wc = wordcloud.WordCloud(
    stopwords=stopwords.union(characters),
    random_state=123,
    background_color='white'
).generate(t)
plt.imshow(wc, interpolation='bilinear')
plt.axis("off")

Wordclouds by character:

def make_wordcloud(who):
    ut = info['who'] == who
    t = " ".join([l.text for z, l in zip(ut, lines) if z])
    wc = wordcloud.WordCloud(
        stopwords=stopwords.union(characters),
        random_state=123,
        background_color='white'
    ).generate(t)
    return wc

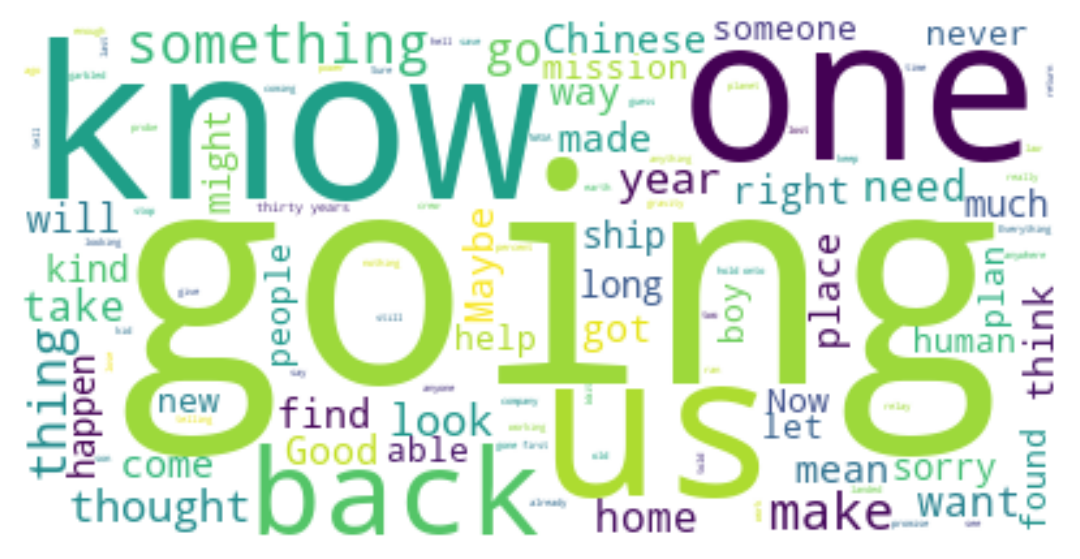

What does Brand say?

plt.imshow(make_wordcloud("BRAND"), interpolation='bilinear')
plt.axis("off")

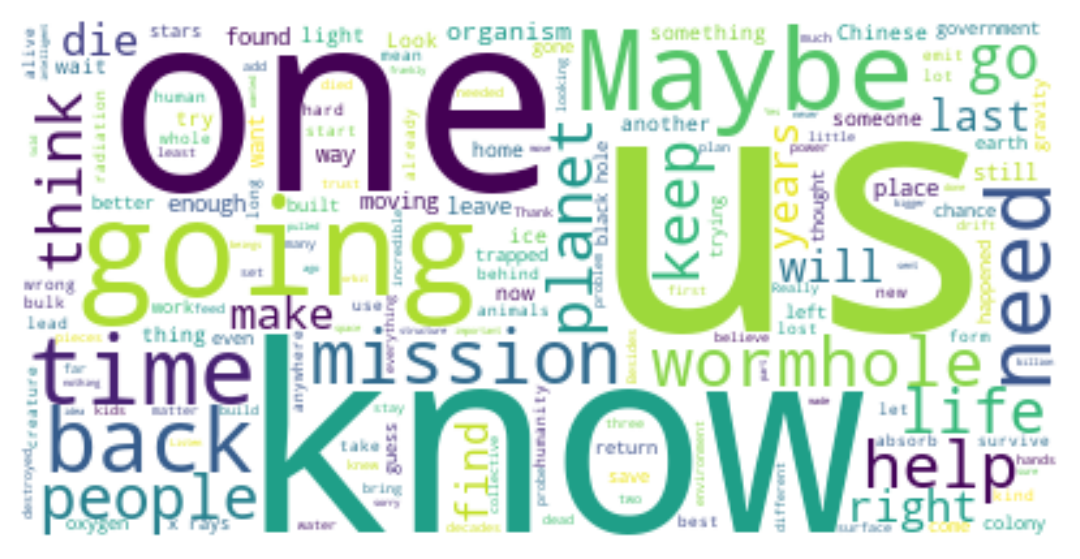

What does Cooper say?

It’s… interesting that she says “maybe” a lot more.

plt.imshow(make_wordcloud("COOPER"), interpolation='bilinear')
plt.axis("off")

Parts of speech: set-up

import collections

chs = pd.DataFrame(info['who'].value_counts())

total = collections.Counter([t.pos_ for l in lines for t in l])
total
Counter({'NOUN': 6822,
         'PUNCT': 6141,
         'VERB': 5239,
         'ADP': 3977,
         'PRON': 3943,
         'DET': 3936,
         'PROPN': 2327,
         'AUX': 1958,
         'ADJ': 1933,
         'ADV': 1714,
         'PART': 1034,
         'CCONJ': 651,
         'SCONJ': 518,
         'NUM': 260,
         'INTJ': 59,
         'X': 2})

Parts of speech: counting

for n in total:
    chs[n] = 0

for who in chs.index:
    ut = info['who'] == who
    c = collections.Counter([t.pos_ for z, l in zip(ut, lines) for t in l if z])
    for n in c:
        chs.loc[who, n] = c[n]

chs.head()
count PROPN PUNCT CCONJ PART DET ADJ NOUN ADP PRON AUX VERB ADV INTJ SCONJ NUM X
who
COOPER 305 52 571 39 175 203 142 366 218 598 337 496 176 24 82 41 0
BRAND 174 30 441 37 129 196 132 361 159 494 301 421 172 11 67 20 1
DOYLE 65 8 131 11 41 64 33 107 70 133 87 118 48 2 12 10 0
CASE 62 22 153 14 45 90 79 163 68 155 98 147 46 3 20 8 0
ROTH 60 9 165 19 64 87 52 134 79 183 103 182 57 5 22 14 0

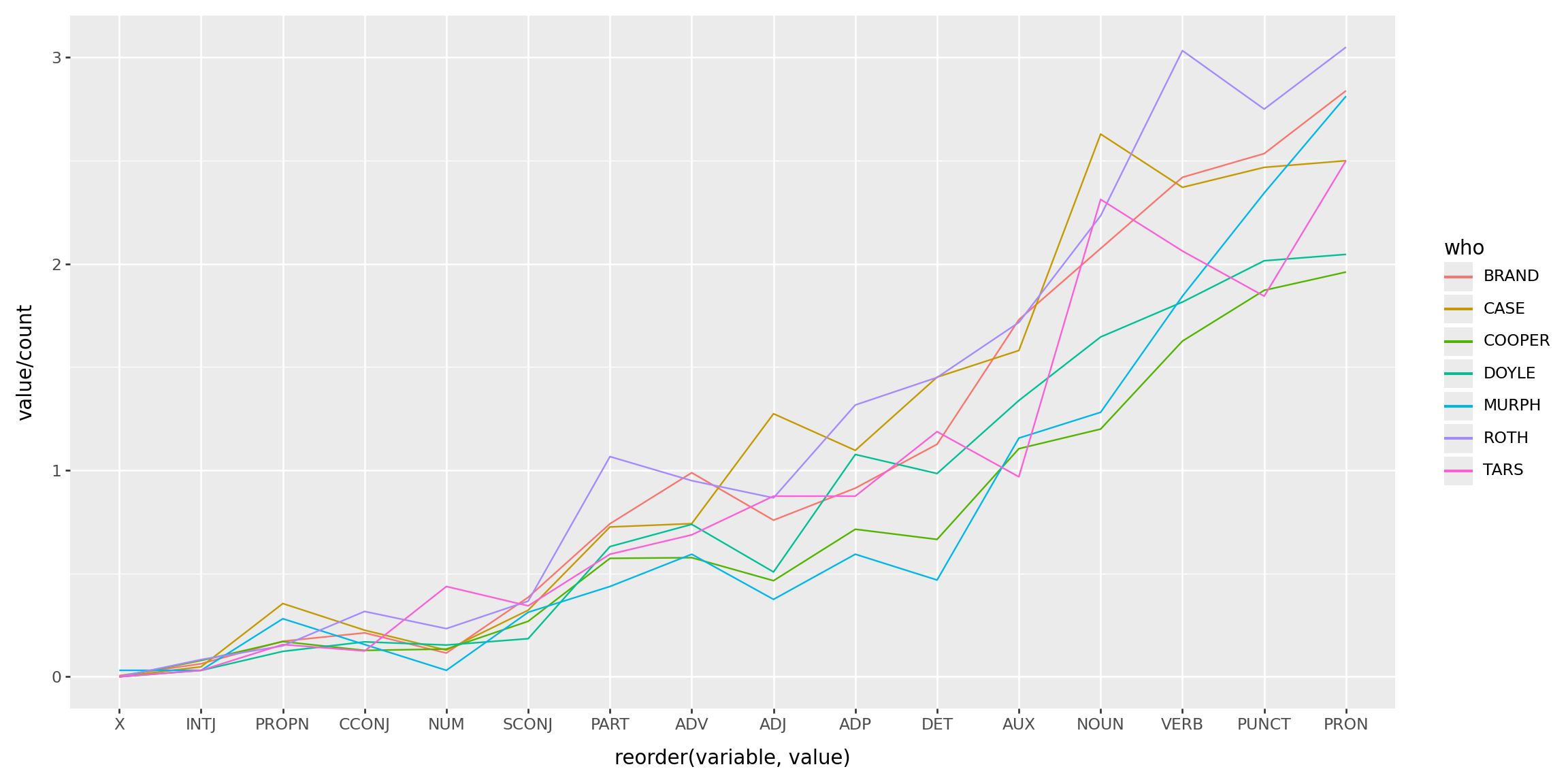

Parts of speech: plotting

(
    chs
    .query("count > 30")
    .melt(id_vars=['count'], ignore_index=False)
    .reset_index()
    >>
    p9.ggplot(p9.aes(x='reorder(variable, value)', y='value/count', color='who', group='who'))
    + p9.geom_line()
) + p9.theme(figure_size=(12,6))

The Bechdel test?

Challenge: Does Interstellar pass the Bechdel test?
