Spatial smoothing

In class Wednesday we made a smoothed version of the density of bike trips: slides.

Today, I’d like you to explore the choice of bandwidth. There were actually two parameters underlying the smoothing: sigma and delta. First, explain:

What are these numbers, in words? Are the values we used in the slides good choices?

Then, explore different choices of these two parameters. To do this:

1. Write a function that takes in sigma and delta and makes a plot.
2. Play around with it.

The code

For convenience, here’s the code, which uses the biketown data.

import pyproj
import geopandas as gpd
import pandas as pd
import numpy as np
import scipy.ndimage
import matplotlib.pyplot as plt
import contextily

gdf = pd.read_csv("data/biketown/2018_08.csv.gz")
gdf = gdf.loc[~gdf['StartLatitude'].isna(),:]
gdf['start_points'] = gpd.points_from_xy(gdf.StartLongitude, gdf.StartLatitude, crs="EPSG:4326").to_crs("EPSG:5070")
gdf['end_points'] = gpd.points_from_xy(gdf.EndLongitude, gdf.EndLatitude, crs="EPSG:4326").to_crs("EPSG:5070")
gdf = gpd.GeoDataFrame(gdf, geometry=gdf['start_points'], crs=5070)

sigma = 500 # meters
delta = 100 # meters
xy = np.array([x.coords[0] for x in gdf['start_points']])
extent = [np.min(xy[:,1]), np.max(xy[:,1]), np.min(xy[:,0]), np.max(xy[:,0])]
xx = np.linspace(extent[2], extent[3], int(abs(extent[3]-extent[2])/delta))
yy = np.linspace(extent[0], extent[1], int(abs(extent[1]-extent[0])/delta))
heatmap, xedges, yedges = np.histogram2d(xy[:,0], xy[:,1], bins=[xx, yy])
heatmap = scipy.ndimage.gaussian_filter(heatmap, sigma=sigma/delta, mode='nearest')

xpts = gpd.points_from_xy(xx, np.full((len(xx),), np.mean(yy)), crs="EPSG:5070").to_crs("EPSG:3857")
ypts = gpd.points_from_xy(np.full((len(yy),), np.mean(xx)), yy, crs="EPSG:5070").to_crs("EPSG:3857")
XX, YY = np.meshgrid(
    [x.coords[0][0] for x in xpts[1:]],
    [y.coords[0][1] for y in ypts[1:]],
)

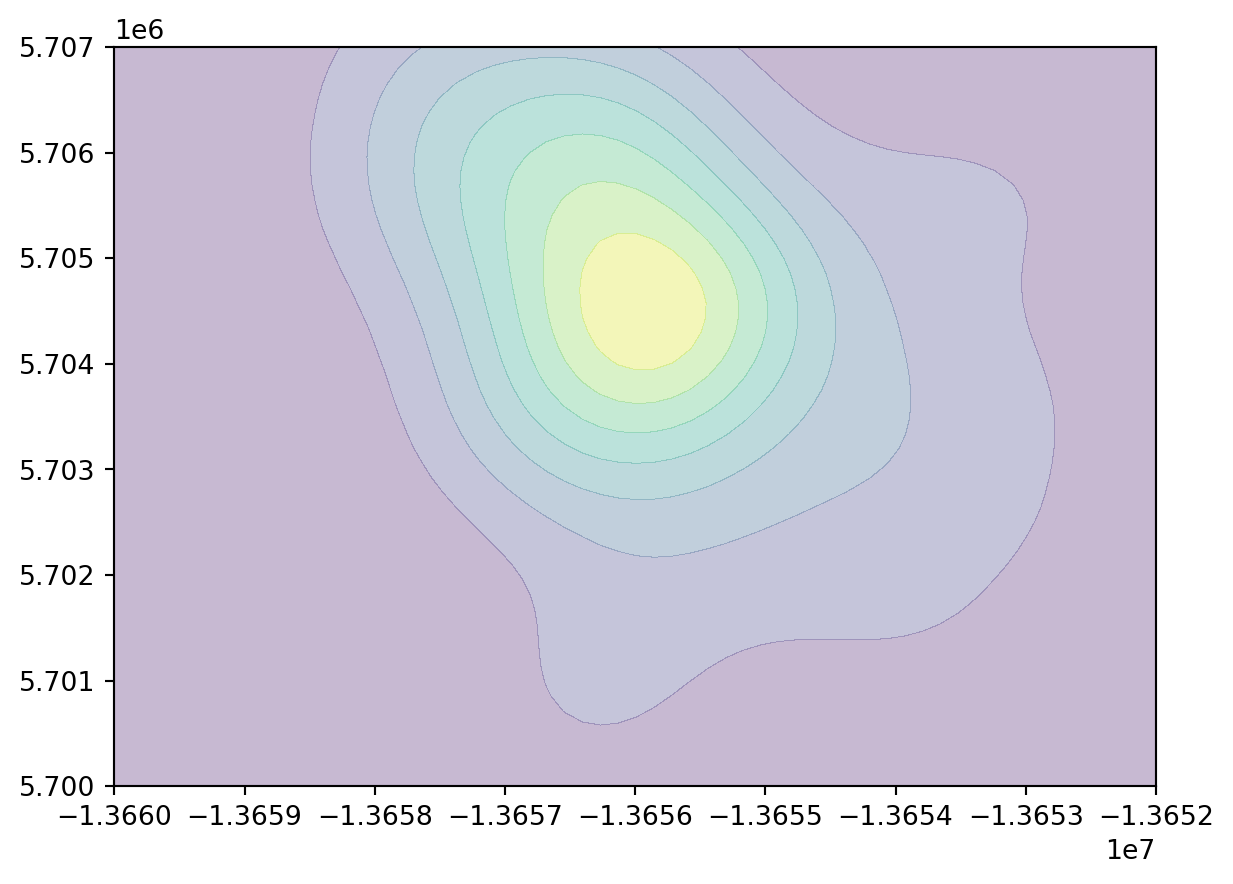

fig, ax = plt.subplots()
ax.contourf(XX, YY, heatmap.T, alpha=0.3)
ax.set_xlim(-1.366e7, -1.3652e7)
ax.set_ylim(5.7e6, 5.707e6)
# uncomment this:
# contextily.add_basemap(ax);
